A single rogue device on an unsegmented network can compromise your entire infrastructure in minutes. If an employee connects an infected USB drive or clicks a phishing link in an accounting workstation, an attacker can pivot straight into your domain controller, customer databases, or production code repositories. Flat networks treat every device as trustworthy once it clears the perimeter firewall. That trust model is broken.
Learning what is network segmentation and deploying it correctly transforms an open, vulnerable environment into a fortress of self-contained security zones. You isolate mission-critical workloads, choke off attacker traversal, and protect sensitive records. Here is how modern network segmentation functions, why it remains fundamental to defense-in-depth, and how it shields systems against modern intrusion.
Table of Contents
Network Segmentation Definition: What Is Network Segmentation?
Direct Answer Block:
Network segmentation is the architectural security practice of dividing a single computer network into smaller, isolated subnetworks (segments) using firewalls, VLANs, and access control policies. It enforces strict traffic boundaries so systems in one zone cannot freely communicate with systems in another without explicit authorization.
In simple terms, think of a submarine. If ocean water breaches an outer compartment, watertight bulkheads seal off that specific room. The ship stays afloat. An open, unsegmented network has no bulkheads. A breach anywhere drowns everything.
By applying a clear network segmentation definition to your network topology, you decide which devices talk to each other. An office printer doesn’t need access to your SQL servers. Your HR payroll software has no legitimate reason to poll manufacturing robotics. Segmentation turns these logical boundaries into hard traffic barriers.

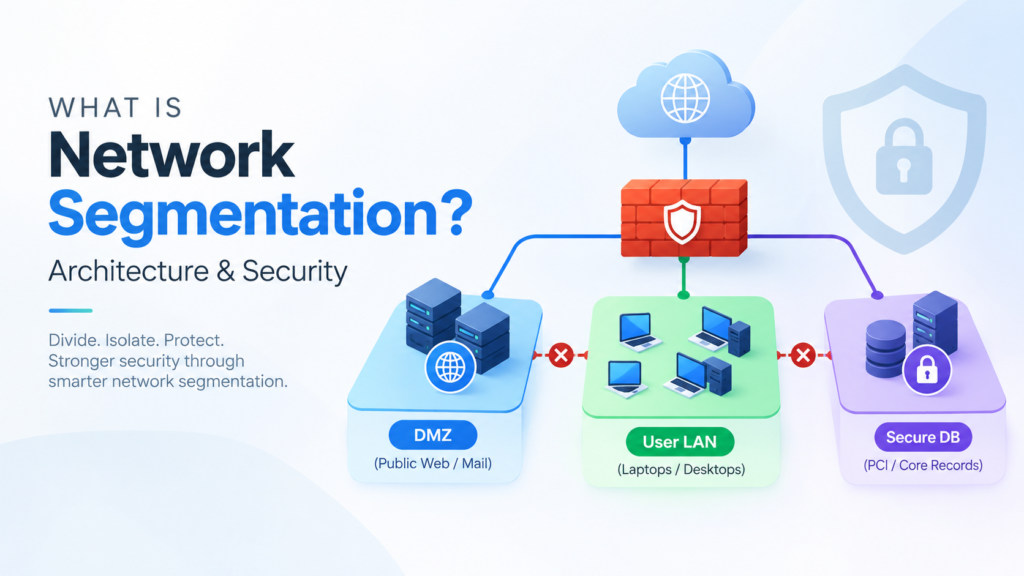

How Network Segmentation Works: The Core Mechanics
Every segmentation model relies on continuous traffic inspection at boundary points. You define policies based on IP addresses, port numbers, network protocols, user identities, or device postures, as outlined in Cloudflare’s guide to network segmentation.
[ External Untrusted Traffic ]
│
[ Edge Firewall ]
│
┌──────────────────┼──────────────────┐
▼ ▼ ▼
[ Zone A: DMZ ] [ Zone B: User LAN ] [ Zone C: Secure DB ]
(Public Web/Mail) (Laptops/Desktops) (PCI / Core Records)
│ │ │
└─── Blocked ──────┴── Deny by Default ──┘
The enforcement workflow operates across three primary stages:
- Isolation at Layer 2 and Layer 3: Network switches tag packets with Virtual Local Area Network (VLAN) identifiers. Routers and Layer 3 switches manage the subnets, creating distinct broadcast domains.
- Access Control Filtering: Next-Generation Firewalls (NGFWs) or Access Control Lists (ACLs) sit between these segments. They inspect incoming and outgoing packets against explicit rules.
- Default-Deny Logic: All inter-segment traffic is blocked automatically. A host in Segment A can reach Segment B only if an engineer configured an active rule permitting that specific port and protocol.
People Also Ask (PAA): Foundational Insights
What is an example of network segmentation?
A classic example is isolating guest Wi-Fi from internal business operations. Visitors can access the public internet, but switch rules prevent their devices from seeing corporate file shares, POS terminals, or internal intranets.
Why is network segmentation important in cybersecurity?
It eliminates the risk of an unchecked perimeter breach. If malware infects an endpoint, segmentation walls off the compromised host so the infection cannot spread laterally across the enterprise.
Does network segmentation stop ransomware?
It significantly restricts ransomware propagation. Most ransomware strains scan local subnets via SMB, RPC, or RDP to encrypt adjacent machines; strict segment boundaries stop automated network-wide discovery cold.
Network Segmentation in Cyber Security: Why It Matters
Direct Answer Block:
In modern cybersecurity, network segmentation serves as the primary barrier against lateral movement and unauthorized privilege escalation. It limits the blast radius of any breach, protects sensitive data repositories, and ensures compliance with strict regulatory frameworks.
Relying solely on edge firewalls is obsolete. Modern intrusions exploit stolen credentials, supply chain vulnerabilities, or zero-day flaws on remote endpoints. When an attacker slips past your perimeter, network segmentation in cyber security dictates what happens next.
Neutralizing Lateral Movement
Intruders rarely land directly on high-value targets. They compromise an entry-level machine a contractor’s laptop or a vulnerable VoIP phone and begin reconnaissance.
In a flat network, attackers use automated port scanning to spot unpatched servers across your company. Combining network isolation with advanced threat protection
ensures you catch intrusions before attackers pivot. Authoritative mitigation frameworks from the Cybersecurity and Infrastructure Security Agency (CISA) highlight proper segmentation as the frontline control against malicious lateral traversal:
- Inter-subnet sweeps trigger alerts instantly on internal firewalls.
- Default-deny rules block lateral protocols like RPC, SMB, and PowerShell Remoting between user subnets.
- The attacker remains trapped in a single, monitored broadcast pool where your security operations team can isolate them quickly.
Shrinking Compliance and Audit Scope
Compliance mandates demand rigorous data isolation. Regulations penalize organizations that mix regulated records with general office operations.
- PCI DSS (Payment Card Industry Data Security Standard): According to the PCI Security Standards Council segmentation guidance, isolating your Cardholder Data Environment (CDE) dramatically cuts assessment costs. If your point-of-sale systems reside in a dedicated, isolated segment with zero connections to the general office network, only that tiny segment falls under strict PCI audit requirements.
- HIPAA & GDPR: Segmentation ensures protected health information (ePHI) and personal identifiers cannot be intercepted by unauthorized workstations on the shared corporate network.
- NIST SP 800-207 (Zero Trust Architecture): The NIST SP 800-207 standards
establish that network micro-perimeters form the baseline physical and logical foundation for a comprehensive zero trust network architecture.
Benefits of Network Segmentation
Direct Answer Block:
The core benefits of network segmentation include reduced attack surfaces, smaller incident blast radiuses, improved network performance, and simplified regulatory audits. It replaces implicit trust with deterministic packet control.
Deploying boundaries does more than bolster security controls. It optimizes your day-to-day operations and network hygiene:
- Drastic Blast Radius Reduction: When a security incident occurs, damage remains confined to the originating segment. Your incident responders can take a single VLAN offline without shutting down the entire enterprise.
- Optimized Bandwidth & Performance: Broadcast traffic drains switch resources. Segmenting networks into smaller broadcast domains stops broadcast storms from saturating unrelated trunks and user segments.
- Granular Access Control: You grant access based on job roles rather than physical location. A software developer doesn’t need route access to accounting ledgers, and marketing teams don’t need shell access to internal DNS servers.
- Faster Incident Detection: Detecting anomalies on a flat network is like searching for a needle in a haystack. On a segmented network, any traffic attempting to jump unauthorized boundaries triggers immediate firewall alerts.
Types of Network Segmentation
Direct Answer Block:
The three primary types of network segmentation are physical segmentation, logical segmentation (VLANs and subnets), and software-defined segmentation (SDN and cloud overlays). Each type offers different levels of isolation, hardware cost, and operational agility.
Selecting the right method depends on your physical layout, budget, and compliance mandates. Most mature organizations use a hybrid mix of all three.
┌────────────────────────────────────────────────────────┐
│ Types of Network Segmentation │
├───────────────────┬──────────────────┬─────────────────┤
│ Physical │ Logical │ Software-Defined│
│ Air-gapped cables │ 802.1Q VLAN tags │ Identity-based │
│ Separate switches │ Internal Firewalls│ Cloud VPCs / SG │
│ High CapEx │ Standard design │ Dynamic scale │
└───────────────────┴──────────────────┴─────────────────┘
1. Physical Segmentation (Air-Gapping)
Physical segmentation relies on dedicated, separate hardware for each network zone. Servers, switches, and cabling for one zone never connect to the hardware of another.
- Best For: Industrial Control Systems (SCADA), nuclear facilities, defense laboratories, and isolated payment processing vaults.
- Trade-Offs: It offers the highest level of protection, but it’s expensive to buy and inflexible to manage. Adding a new segment requires purchasing physical switches and running new cables.
2. Logical Segmentation (VLANs, Subnets & VRF)
Logical segmentation uses shared hardware divided by software logic. Managed switches use IEEE 802.1Q tags to separate traffic into Virtual Local Area Networks (VLANs). Layer 3 switches or internal firewalls route between them.
- Virtual Routing and Forwarding (VRF): Allows a single physical router to host multiple distinct routing tables simultaneously. Traffic paths remain completely isolated from one another.
- Best For: Enterprise office networks, university campuses, and standard corporate data centers.
- Trade-Offs: Cost-effective and flexible, but misconfigurations (such as VLAN hopping or trunk leaks) can create bypass vectors if switch ports aren’t hardened.
3. Software-Defined & Cloud Segmentation (SDN & Micro-Perimeters)
Software-Defined Networking (SDN) abstracts the control plane from the physical hardware. Instead of binding policies to switch ports or IP ranges, policies attach to workload identities, host tags, or software agents.
- Cloud Environments: Amazon Web Services (AWS) Virtual Private Clouds (VPCs) and Azure Virtual Networks (VNets) use software-defined security groups to enforce rules at the virtual network card (vNIC) layer. This forms an essential pillar of enterprise cloud security management across multi-tenant infrastructures.
- Best For: Cloud-native deployments, Kubernetes clusters, and remote-first organizations.
- Trade-Offs: Highly agile and automated, but demands skilled staff to maintain orchestration policies without creating policy sprawl.

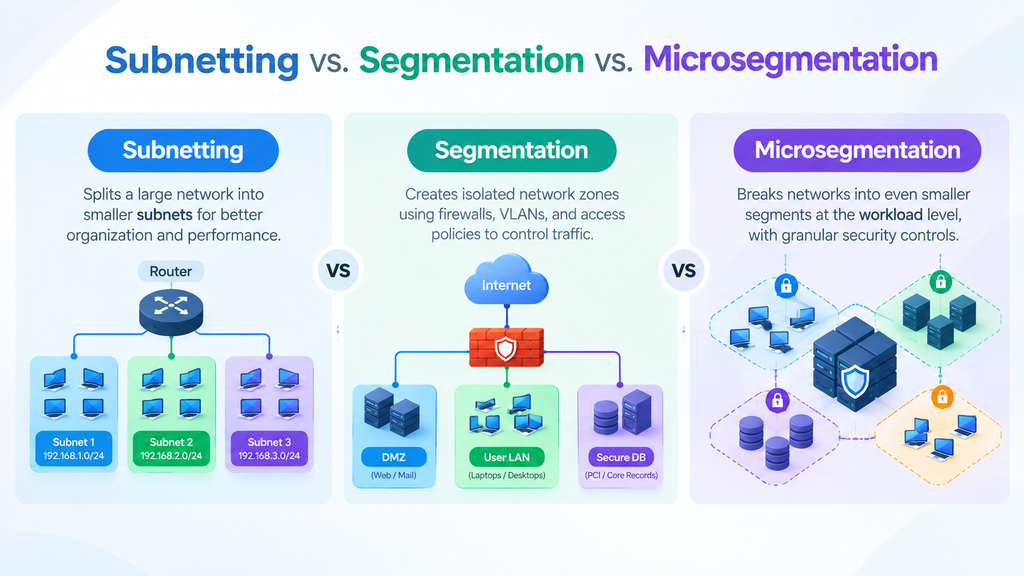

Architectural Comparisons: Subnetting vs. Segmentation vs. Microsegmentation
Direct Answer Block:
Subnetting organizes IP space for routing efficiency, network segmentation adds security controls between those subnets, and microsegmentation enforces granular security policies directly on individual workloads and processes.
Many engineers confuse subnetting with true security boundaries. Splitting an IP block into /24 ranges speeds up packet routing, but it does not block traffic on its own unless an internal firewall or ACL enforces rules between those ranges.
Network Segmentation vs Subnetting
Subnetting divides a large network address space into smaller network addresses to prevent routing table bloat and conserve IP space. However, routers forward traffic between subnets automatically by default.
Network segmentation vs subnetting boils down to intent: subnetting manages routing paths, while segmentation introduces security gates that reject unauthorized packets. Subnetting without firewall policies is merely organization, not protection.
Network Segmentation vs Microsegmentation
Traditional network segmentation inspects “North-South” traffic moving across perimeter zones or between major departmental VLANs. It rarely inspects “East-West” traffic moving between two servers sitting in the same database subnet.
Network segmentation vs microsegmentation represents an evolution in granularity:
- Network Segmentation: Macro-level boundaries (e.g., separating the HR subnet from the Engineering subnet).
- Microsegmentation: Micro-level boundaries applied down to the hypervisor, operating system, or container layer. Even if two application servers share the exact same IP subnet, microsegmentation policies can prevent them from talking to each other.
Comparison Table: Subnetting vs. Segmentation vs. Microsegmentation
| Criterion | Subnetting | Traditional Network Segmentation | Microsegmentation |
| Primary Goal | Efficient IP allocation and routing | Traffic control between network zones | Granular isolation of individual workloads |
| Enforcement Layer | Layer 3 (Routers / IP tables) | Layer 3 & Layer 4 (Firewalls, ACLs, VLANs) | Layer 4 through Layer 7 (vNIC, Agents, Identity) |
| Traffic Focus | Basic North-South routing | North-South & Macro East-West | Granular East-West (workload-to-workload) |
| Security Control | None (open routing by default) | High (zone-to-zone rules) | Maximum (zero-trust workload isolation) |
| Operational Effort | Low | Moderate | High (requires detailed application mapping) |

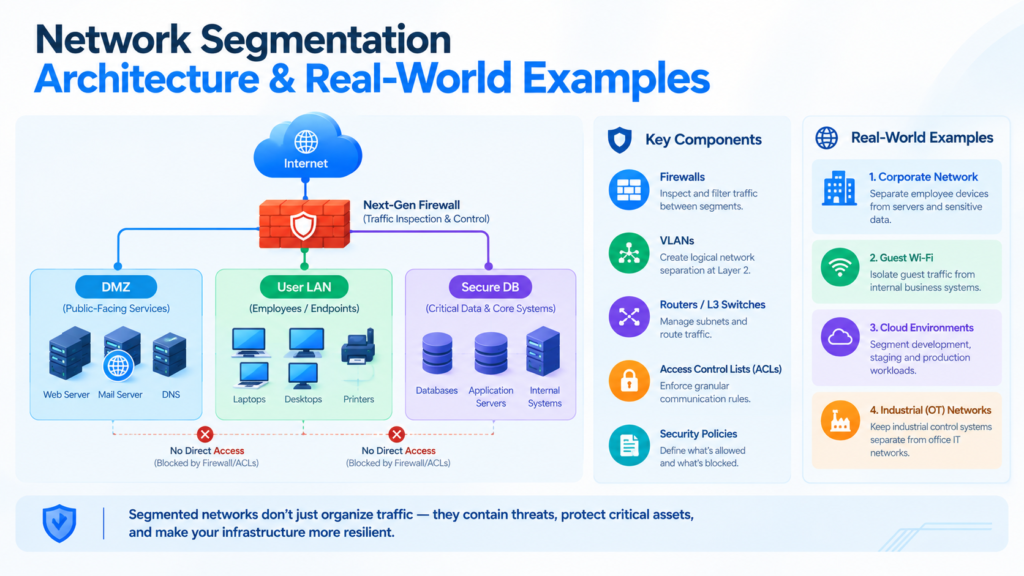

Network Segmentation Architecture & Real-World Examples
Direct Answer Block:
A resilient network segmentation architecture separates infrastructure into functional trust zones, placing next-generation firewalls or stateful inspection devices at every inter-zone cross point. This ensures traffic is verified before moving between zones.
Designing a scalable network segmentation architecture requires clear zone grouping. You must group digital assets by their sensitivity level, regulatory exposure, and operational roles.
[ Public Internet ]
│
[ External Firewall ]
│
┌─────────────┴─────────────┐
▼ ▼
[ Public DMZ ] [ VPN Terminals ]
(Web & Reverse Proxy) (Remote Workers)
│ │
└─────────────┬─────────────┘
│
[ Internal Firewall ]
│
┌────────────────────────┼────────────────────────┐
▼ ▼ ▼
[ Corporate LAN ] [ IoT / OT Zone ] [ Production Tier ]
(Laptops & Desktops) (Printers, HVAC, Cams) (App & DB Servers)
Real-World Architecture Examples
Applying segmentation to concrete operational environments demonstrates how it blocks common attack chains:
Example 1: Isolating IoT and Smart Facilities
Smart thermostats, security cameras, and network printers run lightweight firmware that rarely receives prompt security patches, making them frequent targets for common IoT attacks. In an unsegmented office, an attacker can compromise an IP security camera and use it as an operational staging post to listen to internal unencrypted traffic.
Under a segmented design, IoT devices sit on a dedicated, isolated VLAN. The firewall blocks them from initiating connections to any internal subnet. They can only communicate outward to an authorized cloud telemetry server on a single encrypted port.
Example 2: The Multi-Tier Web Application
A standard public-facing web platform contains three distinct tiers:
- Web Tier (DMZ): NGINX reverse proxies and web servers open to the internet on ports 80 and 443.
- Application Tier: Internal business logic and microservices.
- Database Tier: SQL or NoSQL databases holding customer records.
The web servers talk to the application servers on a single API port. The application servers query the database cluster. The web servers can never reach the database cluster directly. If an attacker breaches the public web server through an application exploit, the internal firewall stops them from dumping database tables directly.
Network Segmentation Best Practices
Direct Answer Block:
Core network segmentation best practices center on comprehensive traffic mapping, adopting a default-deny posture, enforcing identity-driven access policies, and avoiding over-segmentation that leads to operational paralysis.
Segmenting a live production network without planning can sever critical business services. Follow these operational steps to build clean, manageable boundaries.
1. Map Traffic and Dependencies First
Never apply blocking rules to a live network blindly. Begin by running discovery tools and analyzing NetFlow or sFlow telemetry. You need to know every port, protocol, and background service your applications depend on before writing your first firewall rule.
2. Enforce Default-Deny Across All Boundaries
Start every new segment rule base with an explicit Deny All statement. Whitelist only the authorized services your systems require. If a legacy protocol isn’t needed for daily business, keep it shut down.
3. Avoid Over-Segmentation Pitfalls
Splitting networks into hundreds of tiny VLANs creates administrative chaos. If your team needs three change tickets and two hours to connect a new workstation, engineers will build unauthorized bridges and bypasses. Group assets by functional risk, not arbitrary org charts.
4. Implement Out-of-Band (OOB) Management
Keep administrative access interfaces (SSH, RDP, IPMI, iDRAC) off public and user-facing subnets. Confine management ports to an isolated management VLAN accessible only through a hardened jump host with mandatory multi-factor authentication (MFA).
5. Monitor Cross-Segment Telemetry Continuously
Segmentation isn’t a set-it-and-forget-it project. Feed firewall drop logs into your Security Information and Event Management (SIEM) tool. A sudden spike in rejected connection requests between user laptops and database segments is often your earliest warning of an active malware infection.
Frequently Asked Questions About Network Segmentation
What is the primary purpose of network segmentation?
The primary purpose is to boost security by dividing a broad network into contained sub-units. This limits an attacker’s lateral movement during a breach, protects critical data, and improves operational control over traffic.
Does subnetting count as network segmentation?
No. Subnetting organizes IP addresses for routing efficiency, but it does not block traffic by default. Routers automatically pass traffic between subnets unless you enforce firewall rules, ACLs, or stateful filters between them.
What is the difference between a firewall and network segmentation?
A firewall is a security enforcement tool, while network segmentation is an overall architectural strategy. You use firewalls (along with switches and routers) to implement and enforce your network segmentation boundaries.
Can network segmentation prevent ransomware infections?
It cannot stop an initial phishing attack from landing on a workstation, but it prevents ransomware from spreading across your entire company. Hard segment boundaries block automated scanning tools from finding and encrypting adjacent servers.
How does network segmentation support Zero Trust architecture?
Zero Trust operates on the principle of “never trust, always verify.” Network segmentation provides the micro-perimeters and policy checkpoints necessary to verify identities and inspect traffic continuously instead of granting blanket access.
Next Steps: Hardening Your Infrastructure
A flat network is a ticking clock for an enterprise breach. Leaving your critical database servers on the same logical plane as public Wi-Fi or office endpoints leaves your security posture down to luck.
Begin your rollout by auditing your current IP address space. Identify your most valuable assets, map their active application dependencies, and build a dedicated management zone. Taking these deliberate steps isolates internal threats and ensures that an initial compromise stays a minor incident rather than a company-wide catastrophe.
